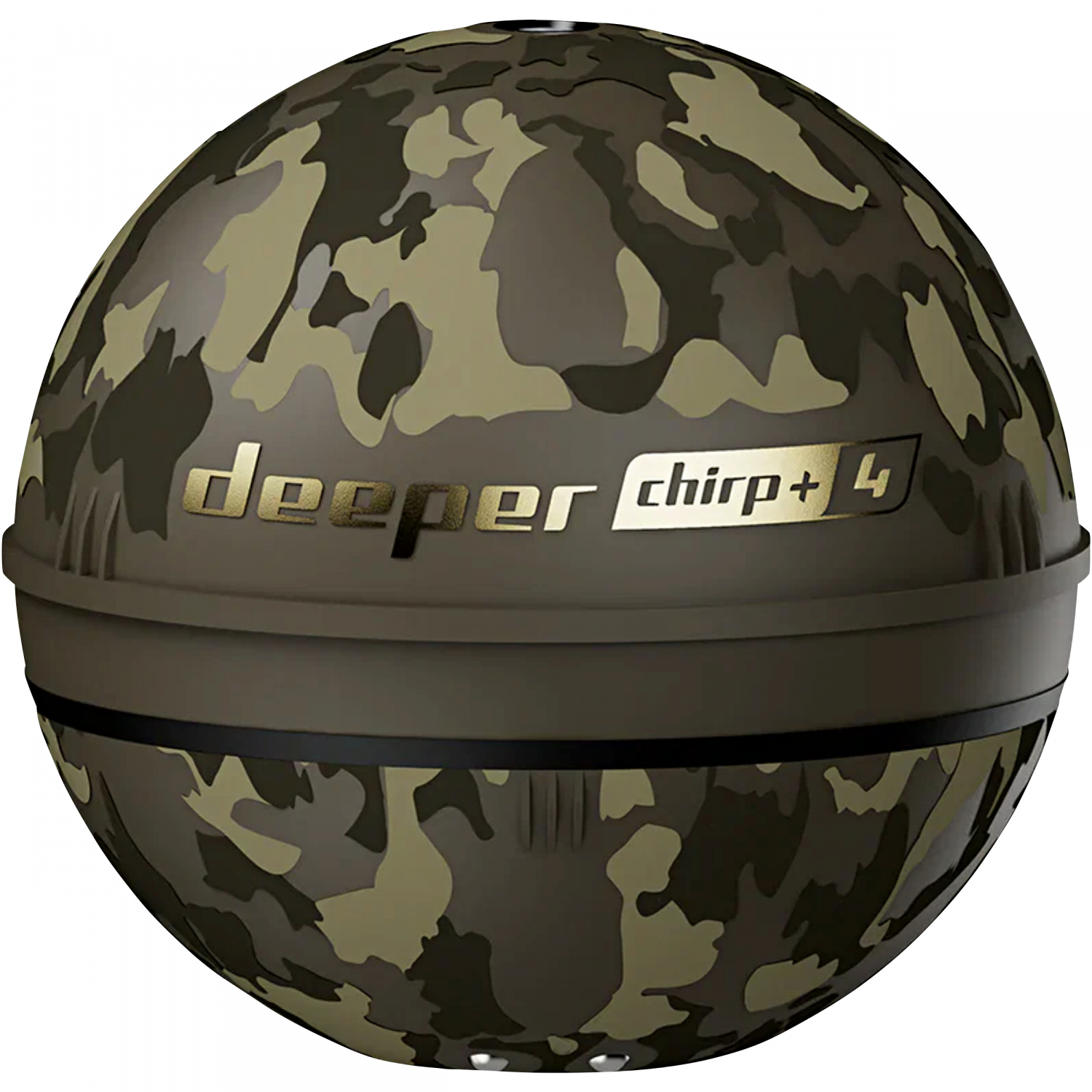

Deeper Chirp +4

High-end fish finder with intelligent fish detection
The Deeper CHIRP+ 4 is a castable fish finder that combines modern CHIRP sonar technology with intelligent signal processing. This reliably separates fish signals from interference and displays them clearly, without the need for complex interpretation of the raw data.

Precise real-time water analysis
Based on high-resolution sonar data, the device provides detailed information on depth, bottom structure and underwater features such as edges or vegetation. This allows you to quickly identify promising areas and target them for fishing.

Flexible adaptation to any fishing situation
The scan can be adjusted as required using various adjustable beam widths – from wide-area searches to detailed analysis. This enables efficient use in different waters and situations.

Technical Data
Material: ABS
Sonar type: 3 beams
Frequency (beam angle): 100 kHz, 47° / 240 kHz, 20° / 675 kHz, 7°
Max/min depth range: Max: 100 m / Min: 0.15 m
Scan rate: 15 scans per second
Operating temperature: -20°C to 40°C / -4°F to 104°F
Internal battery: Lithium-ion polymer / 3.8 V / rechargeable / 1300 mAh (typical)
Power supply (power adapter not included): 5V DC / 1.5 A max. / Input AC 110V/240V / Output USB-C
Connection range: 120 m (depending on operating system and smartphone model)
Colour: Brown/Green
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
Size: 6.5 cm
Weight: 94 g
Connection type: Wireless Wi-Fi connection | 802.11 b/g, 2.4 GHz channel – 802.11 b max. transmit power +20 dBm | 802.11 g max. transmit power +18 dBm, receive sensitivity -76 dBm
